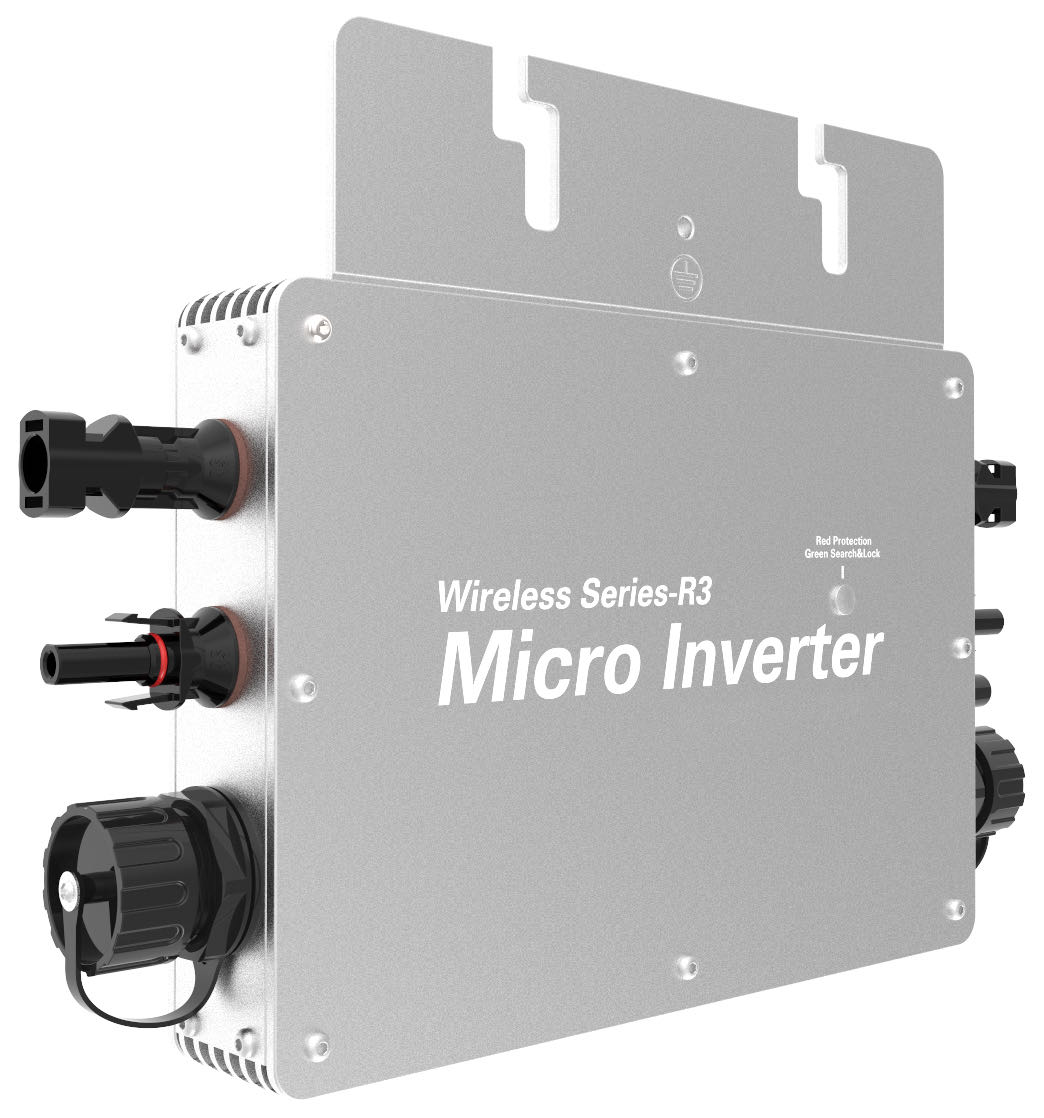

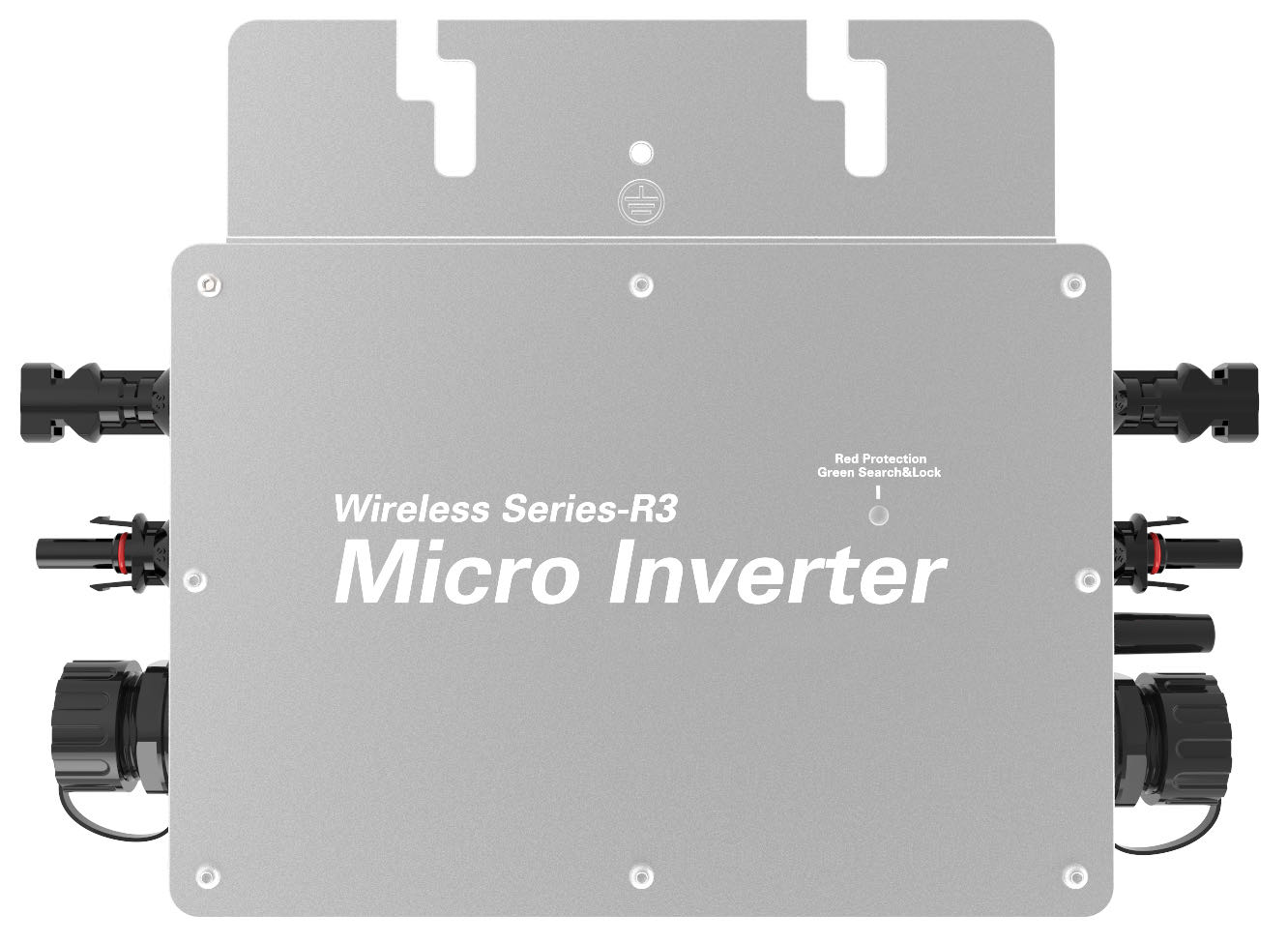

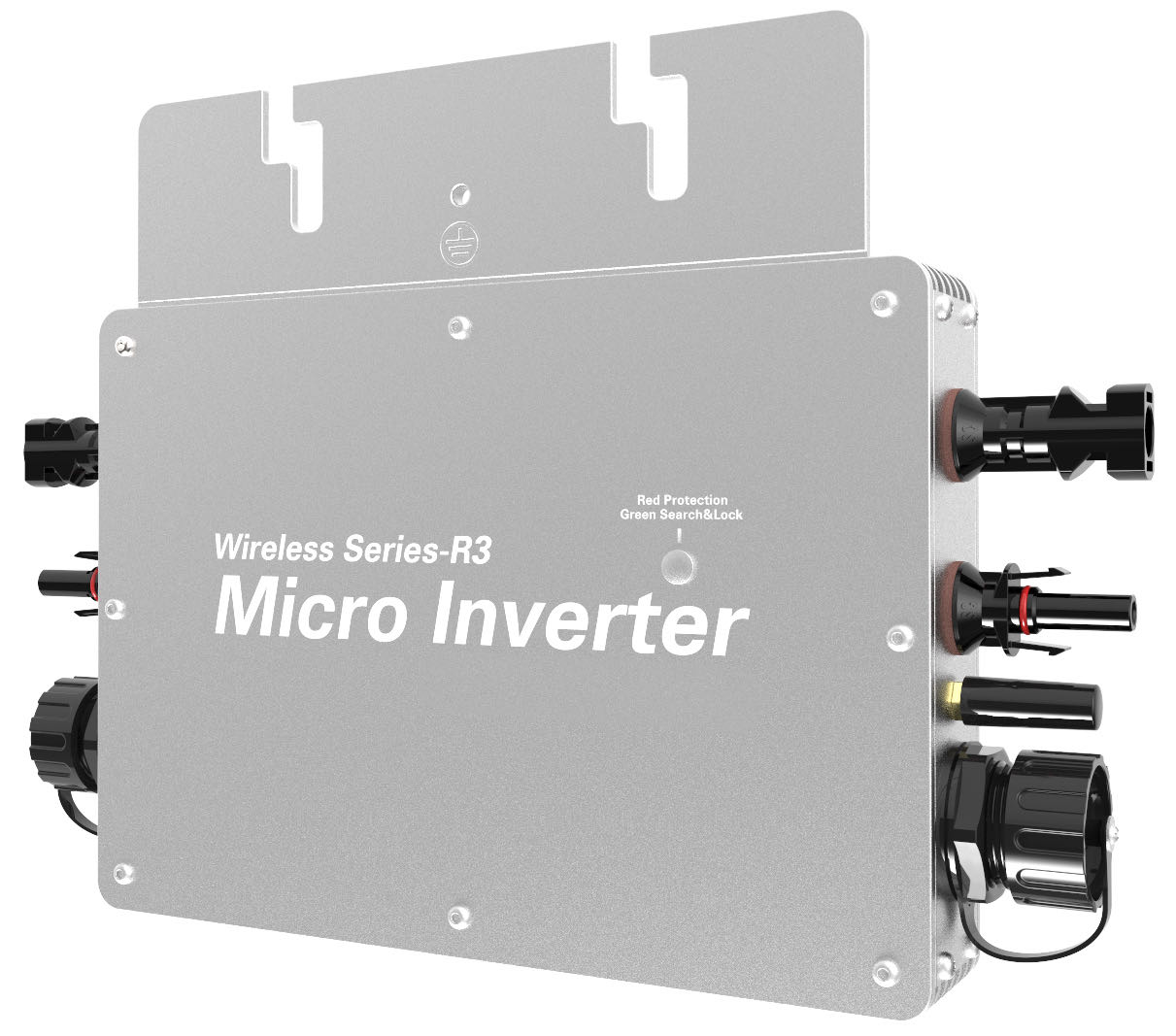

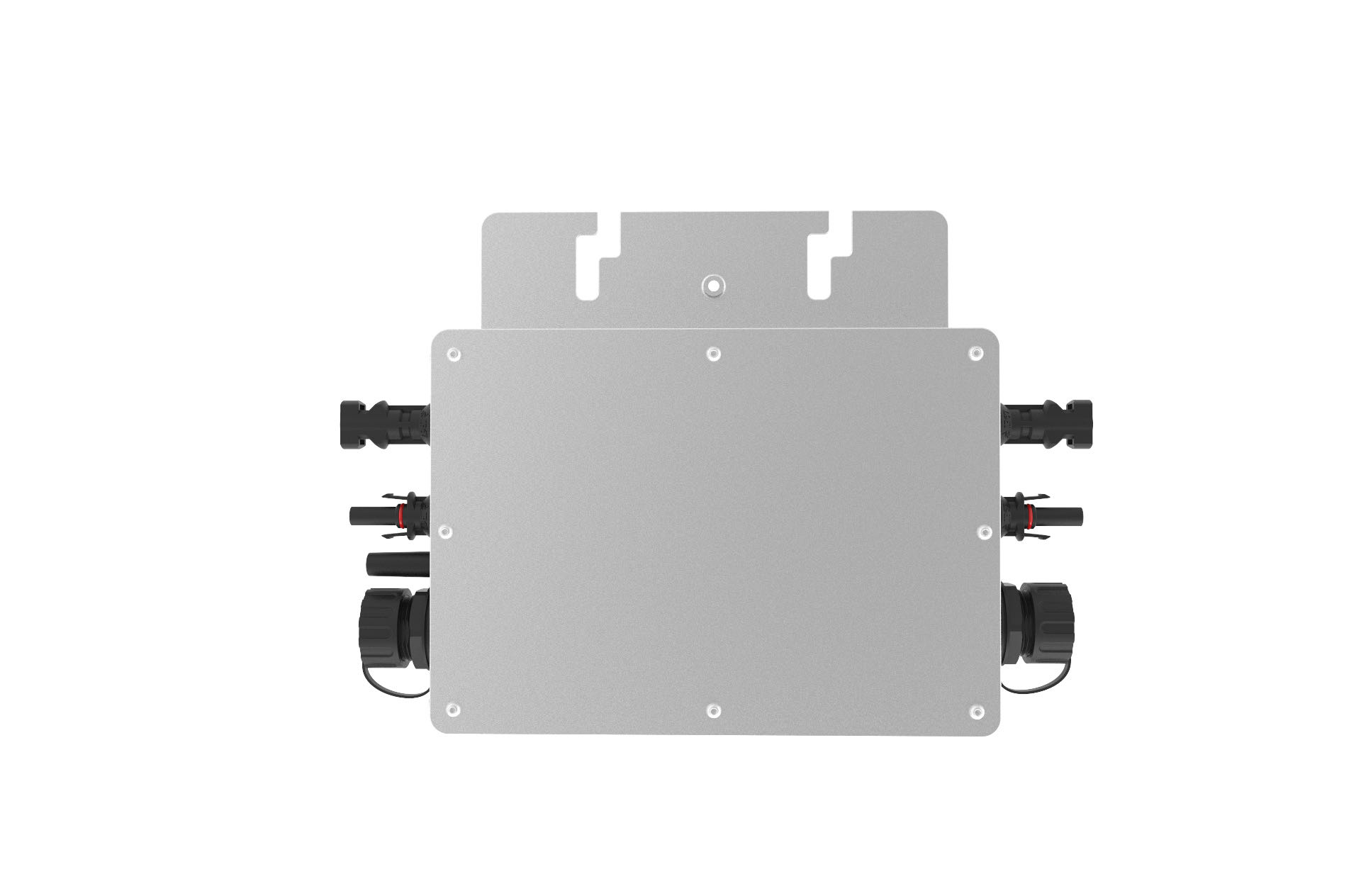

Micro Inverter Myers Power MMI-800

Opis

Micro Inverter Myers Power MMI-800

The Myers Power MMI-800 is a powerful solution for maximizing your solar energy system’s efficiency. The system consists of micro-inverters that convert direct current (DC) to alternating current (AC) and feed it into the public grid. The system is designed to install one micro-inverter for every two PV modules. Each micro-inverter works independently ensuring that each PV module has maximum power generation. This setup enables the user to directly control the efficiency of the individual PV module arrays, increasing the flexibility and availability of the system’s dependability.

Specifications:

Maximum Input Power: Max 2×500W
Mppt Voltage Range: 30-60V
Maximum Input Current: 2×18A
Nominal Frequency Range: 50Hz/60Hz
CEC weighted Efficiency: 92.5%
Dimension: 283×200×41.6mm
Waterproof level: IP65

Download documentation

Package Includes:
1x Micro Inverter Myers Power MMI-800
