Portable Charger for electric cars PMAC 4950 T2-3P16 11KW 5M, EV charging station Elvix

Opis

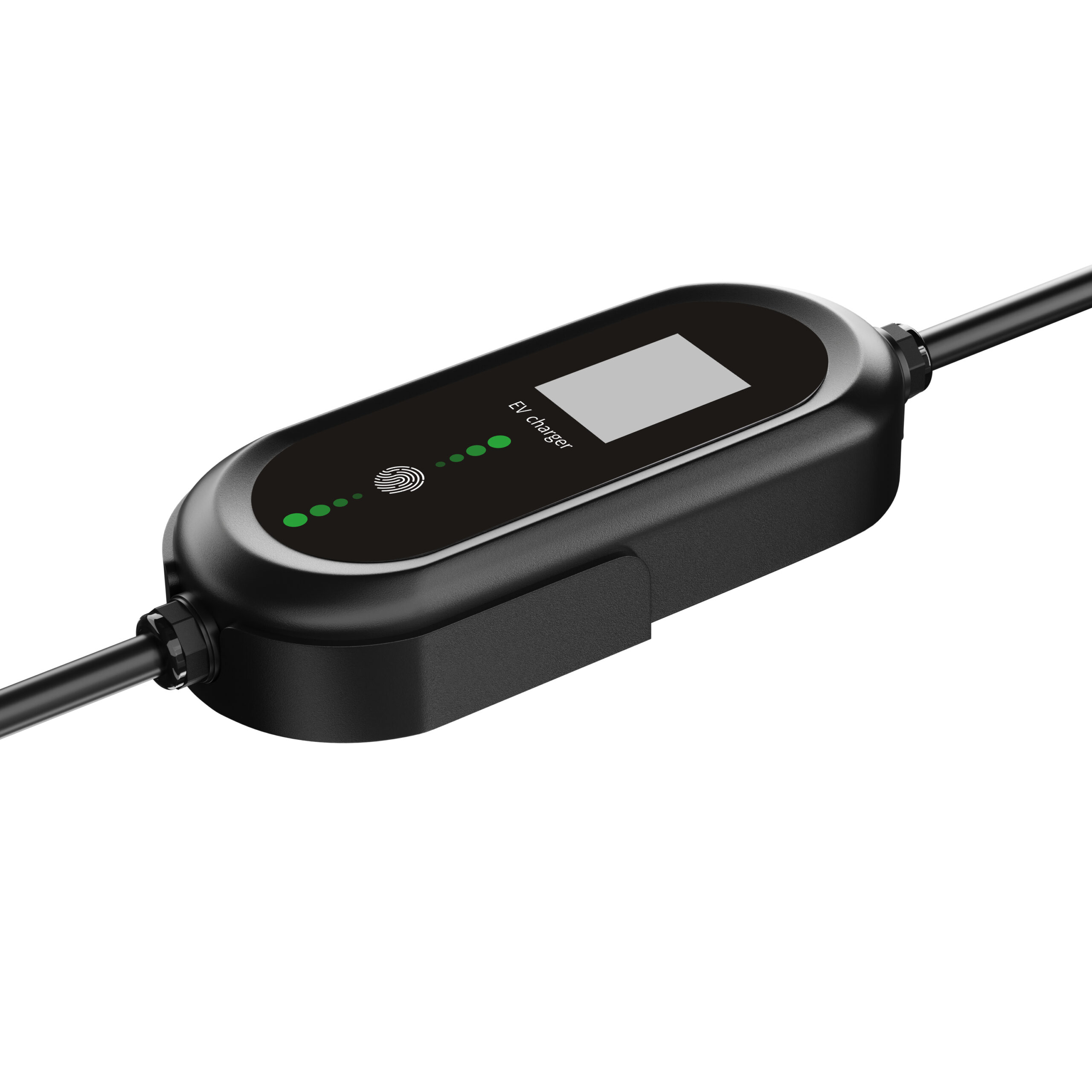

Portable Charger Elvix PMAC 4950 T2-3P16 11KW 5M

The Elvix PMAC 4950 is a powerful and versatile portable charger with an output of 11kW. Designed for both indoor and outdoor use, it ensures reliable charging for your electric vehicle with a 5-meter charging cable and Type 2 connector. Featuring multiple charging modes, including Plug & Play, scheduling (Booktime), and current regulation, it offers flexibility and convenience. The charger's robust protection features (IP67 rating) and fire-resistant housing ensure safety and durability, while its compact design allows easy store and portability.

Specifications:

Power Plug: Three-phase industrial plug
Cable Size: 5*2.5MM² + 0.75MM
Maximum Power: 11KW
Input Voltage: AC380V
Output Current: 16A
Standby Power: 3W
Protection: IP67
Temperature Range: -30 to +50℃
Display: 3.2-inch screen
Certification: TUV, CE, ROHS, CB
Dimensions: Charging Gun - 240x98x70mm; Control Box - 245x105x76mm
Net Weight: About 3.4KG
Model: Plug &Play / Booktime/ Current Regulation
Enclosure: PC9330
Cable Length: 5M
Input Frequency: 50HZ/60HZ
Cooling Method: Natural Cooling
Standard: IEC62196-2
Flammability rating: UL94 V0
Packing: Box 410*410*125MM (About4.9KG)
Safety design: Over Curren Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage, Frequency, Temperature Protection
Color: Black

Package Includes:
1x Charger with cable
1x Manual
1x Screw set
1x Charger bag
