Tesla Gen 2 NEMA Adapter TS-3P32-CEE 22KW Red Elvix

Opis

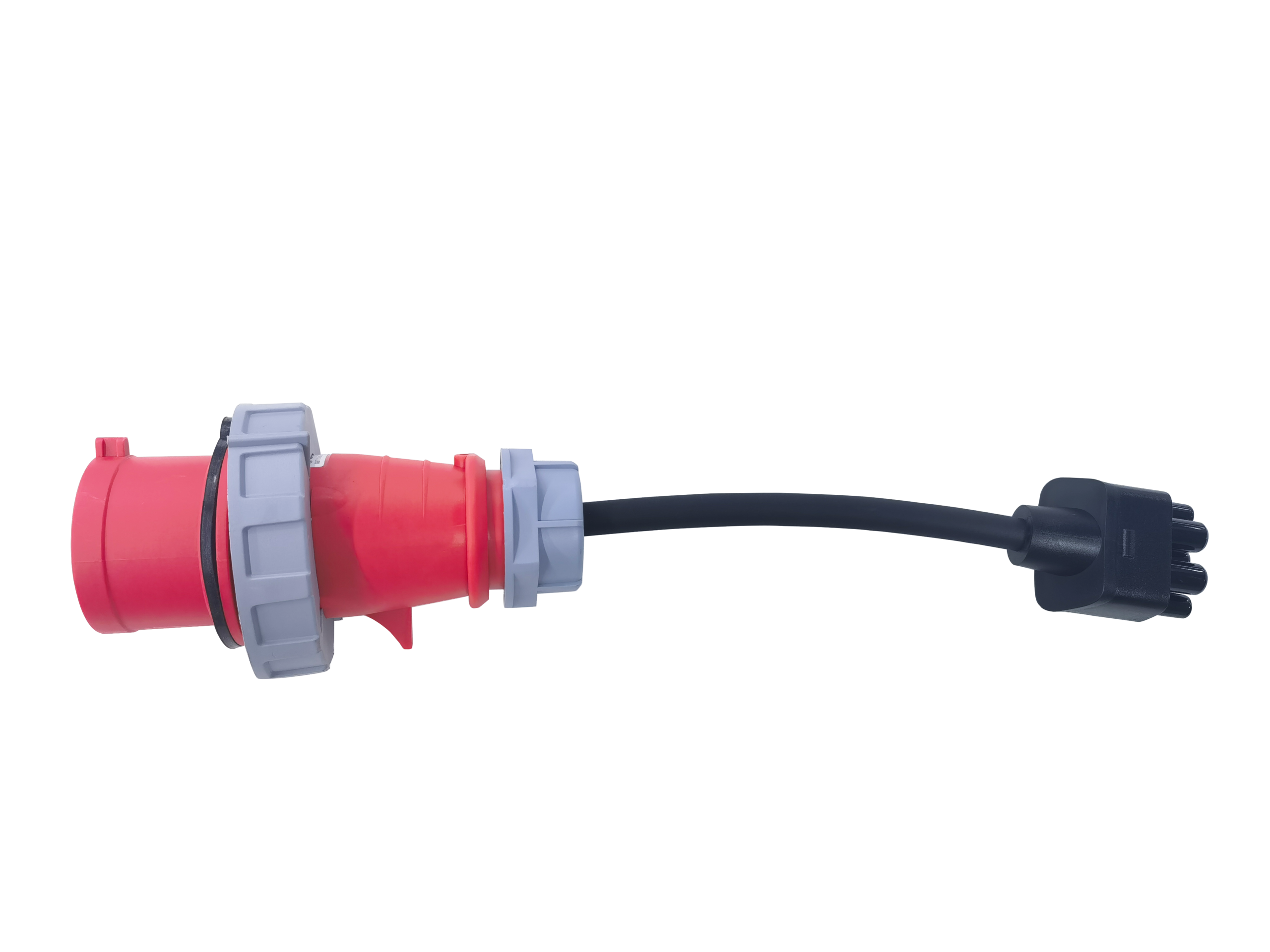

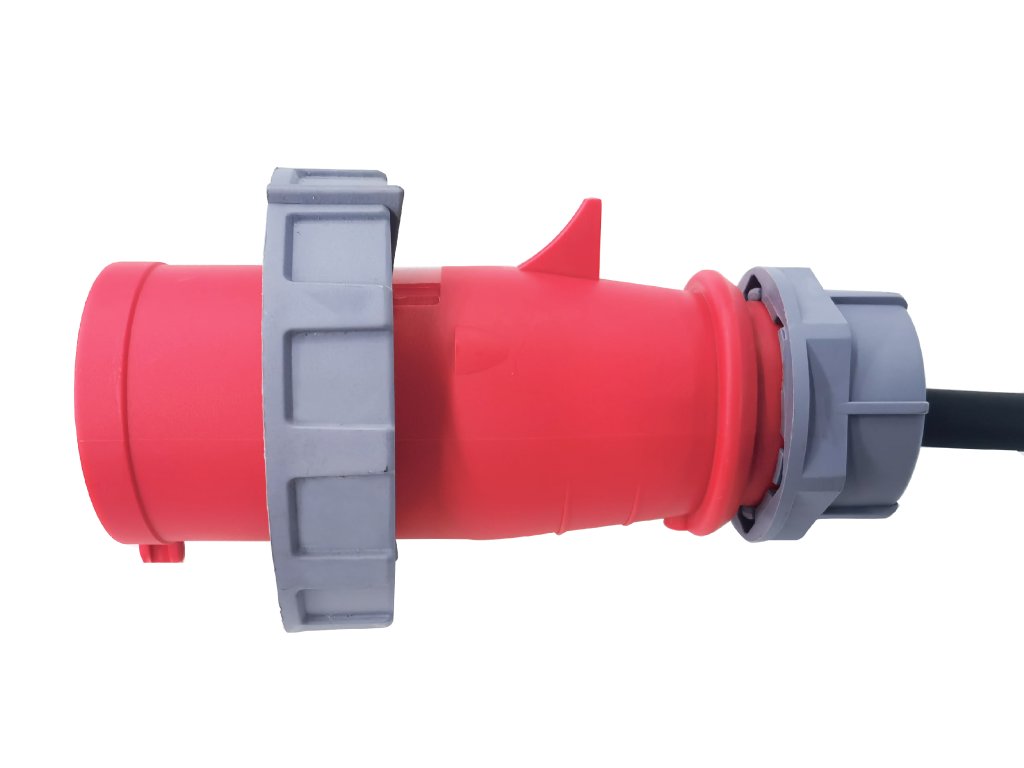

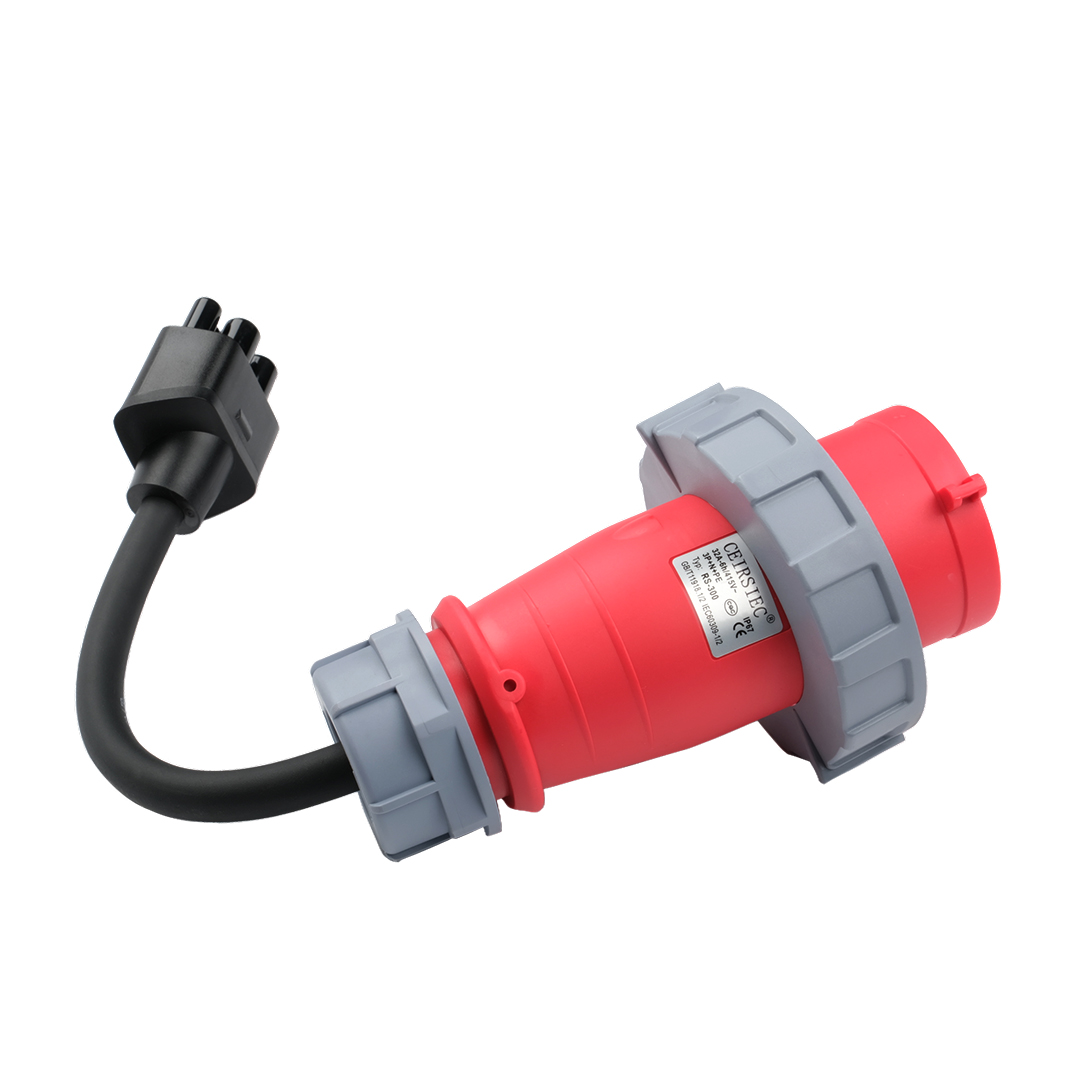

Tesla Gen 2 NEMA Adapter TS-3P32-CEE 22kW (Red)

This adapter allows you to connect your Tesla Mobile Connector charger to a three-phase CEE 32A socket (22 kW), commonly found in industrial and commercial environments. Its lightweight design at 0.5kg and robust construction ensure long-lasting reliability, with a plug life exceeding 10,000 uses.

Although the adapter plugs into a three-phase power source, Tesla vehicles charge using only a single phase. This means the adapter enables access to high-capacity outlets, but the actual charging power is limited by the single-phase capability (typically up to 7.4 kW, depending on the vehicle and installation).

Important: The “22 kW” label refers to the socket type, not the actual charging power the Tesla will draw.

Compatibility:
– Tesla Gen 2 Mobile Connector
– CEE 32A sockets (5-pin, 3-phase)
– Intended for use in Europe

Specifications:

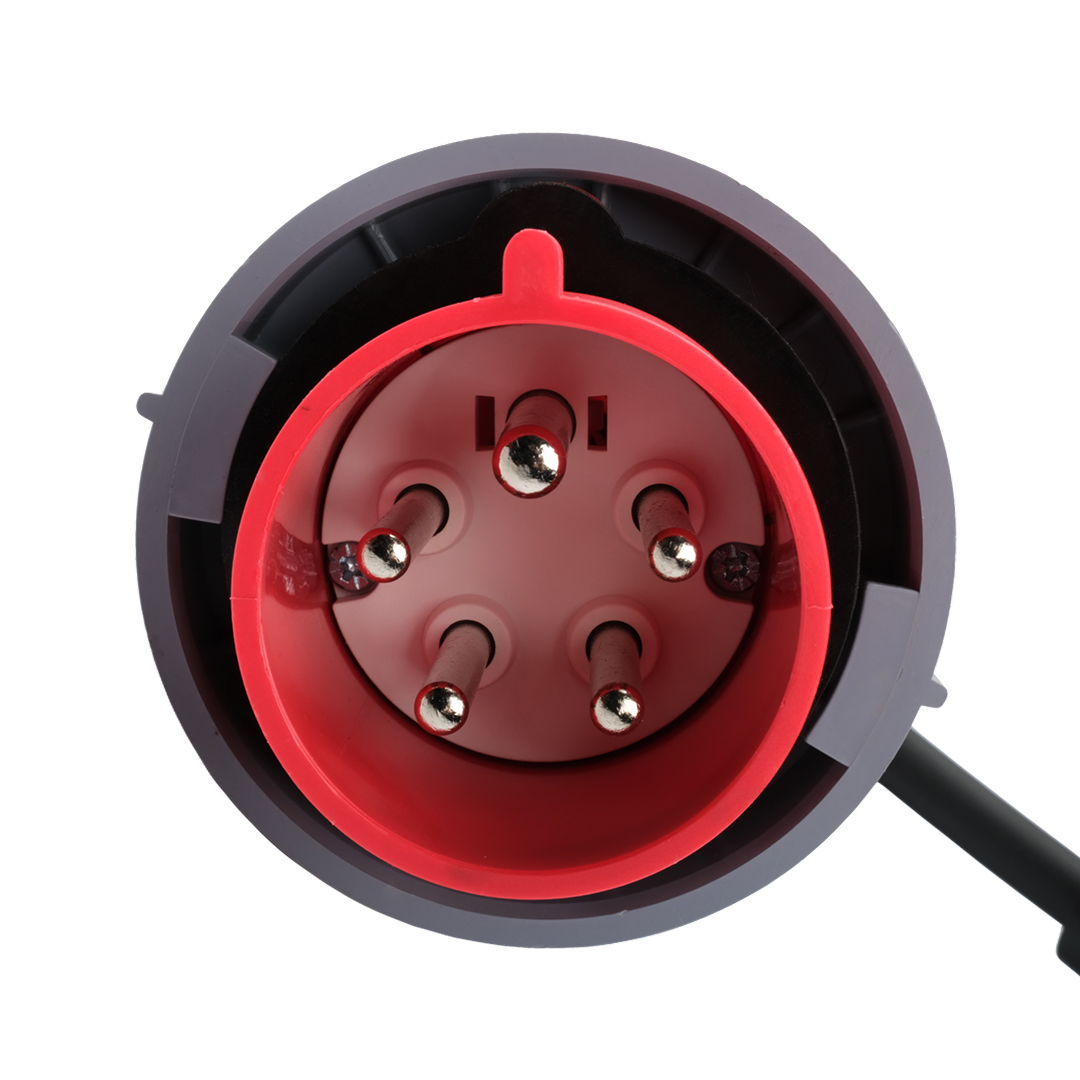

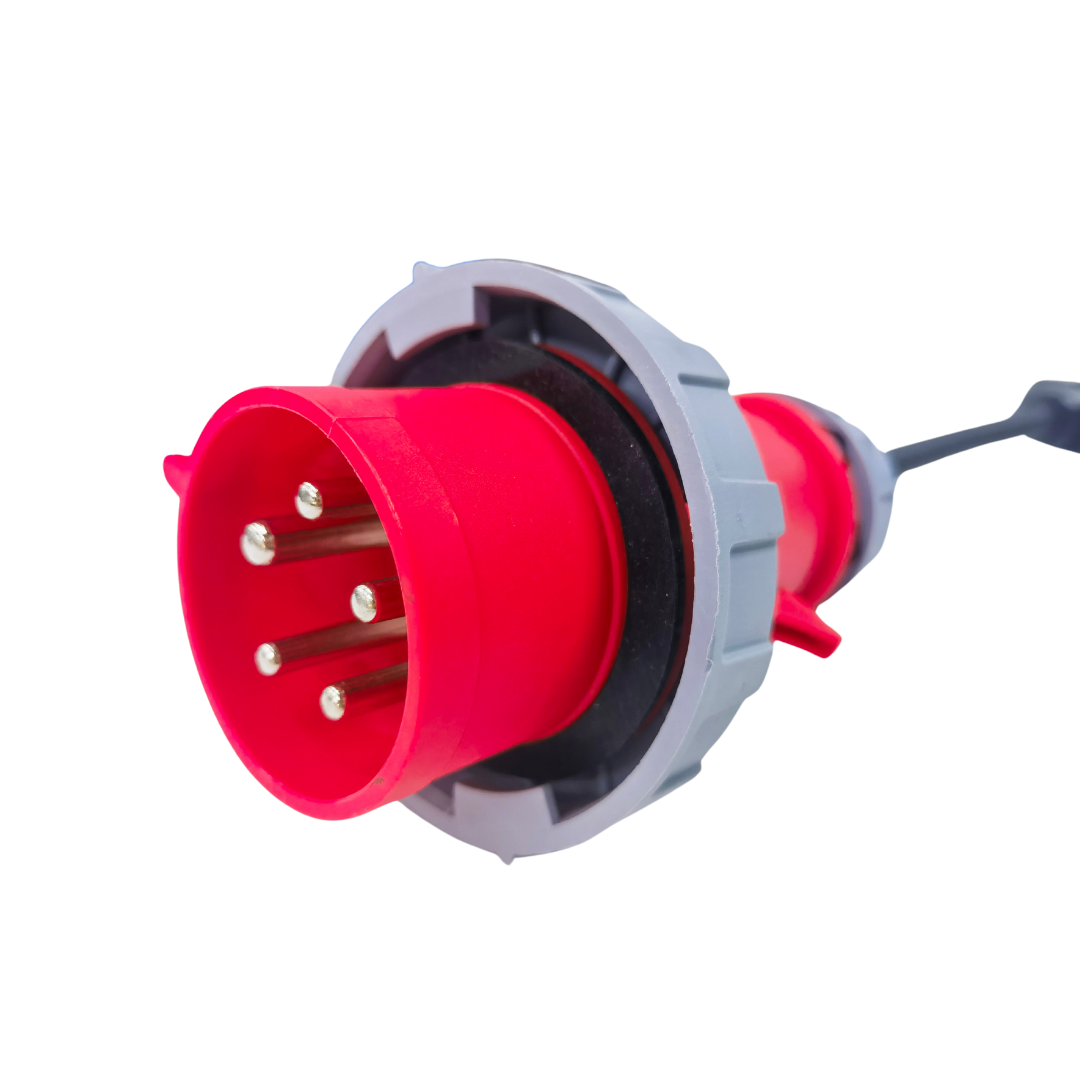

Plug Type: 3-phase Red 5-pin
Rated Current: 32A
Withstand Voltage: 2500V AC
Plug Life: >10,000 times
Coupled Insertion Force: <70N
Housing: Plastic
Weight: 0.5kg
IP Rating: IP55
Size: 400mm
Operating Temperature: -30 to 50℃

Package Includes:
1x Adapter
